Canon EF 100mm f/2.0 USM Lens

Product Summary

Features

Despite a large maximum aperture of f/2.0, the lens still remains compact. For a 100mm prime medium telephoto lens the EF 100mm f/2.0 USM has a wide f-stop of f/2. Ergonomically the f/2 100mm and the EF 85mm f/1.8 Canon lens are identical (albeit there are a small few grams of weight difference and a few millimeters of difference in height). This lens is designed for people who need a medium tele photo lens for their travels. This lens also satisfies the need for one looking for a portrait lens.

Canon’s USM (ultra-sonic motor) technology provides the user with quiet auto-focusing. The lens has rear focusing elements which mean the lens does not move externally when focusing. If you’re into precision filter and polarizer based photography this should appeal to you. The closest focusing distance of the lens is 3 feet or (0.9 meters) with a maximum reproduction ratio of 1:7.1.

The diaphragm of the lens is made out of 8 blades. The widest aperture is f/2 while it can stop all the way down to f/22. The wide f/2 aperture is also responsible for the beautiful bokeh (soft out of focus background or foreground). For a wide lens of f/2 lens vignetting is a going to be a issue, specially when using with a full frame. stopping down to f/2.8 reduces the problem of vignetting. When used with a crop 1.3x or 1.6x DSLR the problem of vignetting is negligible to non-existent.

The lens has an overall external dimension of 3.0″ x 2.9″ and weighs 460 grams. The filter specification of the lens is 58mm.

Sample Images by Canon EF 100mm f/2.0 USM on Flickr

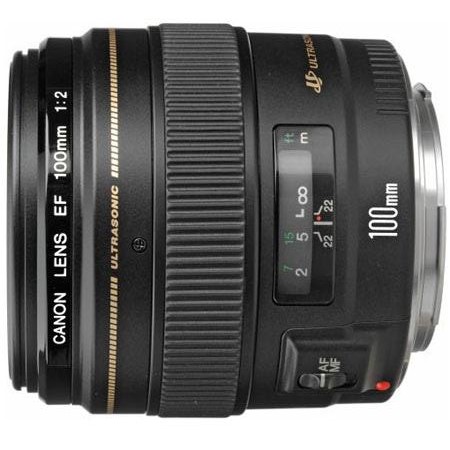

Product Photos

Canon EF 100mm f:2 USM -b Canon EF 100mm f:2 USM -aCanon EF 100mm f/2.0 USM Specifications

Angle of view H:20°,V: 14°,D: 24°
Construction (elements/groups) 8/6
No. of diaphragm blades 8
Min aperture 22
Closest focusing distance (m) 0.9
Max magnification (x) 0.14
AF Motor USM
Filter Size (mm) 58
Max. diameter x length (mm) 75 x 73.5
Weight (g) 460
Magnification – Extension Tube EF12 II 0.27 – 0.13
Magnification – Extension Tube EF25 II 0.42 – 0.28
Lens hood ET-65III
Hard case LH-B12
Soft case ES-C13/LP1014
