Canon EF 40mm f/2.8 STM Pancake Lens

Product summary

Key features

  • Portable pancake design
  • Smooth, quiet STM focusing when shooting movies on compatible cameras
  • Fast f/2.8 maximum aperture for low-light shooting
  • Close focus to 0.3m
  • Fast, quiet AF for pin-sharp results
  • Great image quality right across the frame

Features

A unique and indispensable addition to Canon’s series of EF lenses, the new EF 40mm f/2.8 STM offers an ultra-slim and lightweight design. Incredibly compact in size, the EF 40mm f/2.8 STM delivers high image quality from the center to the periphery thanks to its advanced lens configuration including an aspherical element, a bright 2.8 aperture, and optimized coatings that minimize ghosting and flare while providing exceptional color balance. The EF 40mm f/2.8 STM’s unobtrusive design helps the photographer avoid overwhelming their subjects with a large lens and to remain discreet in sensitive shooting situations with no compromise in performance. Its diminutive design is complemented by features such as a newly developed stepping motor for smooth and quiet continuous AF while capturing video with the Canon EOS Rebel T4i DSLR, a circular aperture (7 blades) for beautiful soft-focus backgrounds, and a short minimum focusing distance of only 0.98 ft./0.30 m.

The EF 40mm f/2.8 STM is Canon’s first EF pancake lens with a fixed focal length of 40mm and wide f/2.8 aperture, making it ideal for photographers who want a versatile, compact and lightweight lens for portrait, reportage, travel or landscape situations. Precision control over the circular, seven-blade aperture is enabled by the EMD, producing a beautiful bokeh effect and an aspheric lens with Super spectra coatings ensures optimal image quality from the centre of the lens to the periphery for stunning shots of practically any subject. Available at B&H | Adorama | Amazon

Sample Images by EF 40mm f/2.8 STM on Flickr

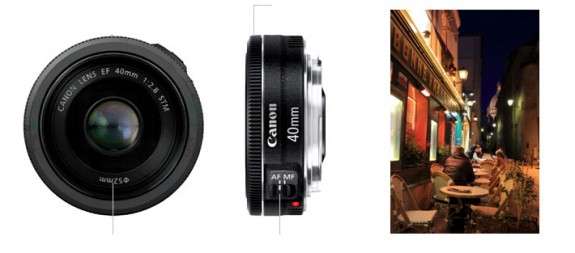

Product Images

Canon EF 40mm f:2.8 STM Pancake Lens

Canon EF 40mm f:2.8 STM Pancake Lens b

Canon EF 40mm f:2.8 STM Pancake Lens a

Canon EF 40mm f/2.8 STM Specifications

Angle of viewH: 49º,V: 34º,D:57º
Construction (elements/groups)6/4
No. of diaphragm blades7
Min aperture22
Closest focussing distance (m)0.3
Max magnification (x)0.18
Distance InformationProvided
Image stabilizer
AF MotorSTM
Dust/moisture resistance
Filter Size (mm)52

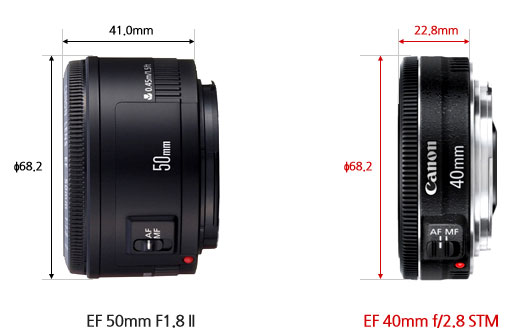

Max. diameter x length (mm)68.2 x 22.8
Weight (g)130
Lens CapE-52
Lens hoodES-52
Lens case/pouchLP811
G.F.Holder III (hood III*)
G.F.Holder IV (hood IV*)
Magnification Extension Tube EF12 II0.50-0.32
Magnification Extension Tube EF25 II0.88-0.70
Extender CompatiblityNC

Additional Info

Purchase options

EF 40mm f/2.8 STM  available at B&H | Adorama | Amazon
